Shengli Centrifuge Manufacturing

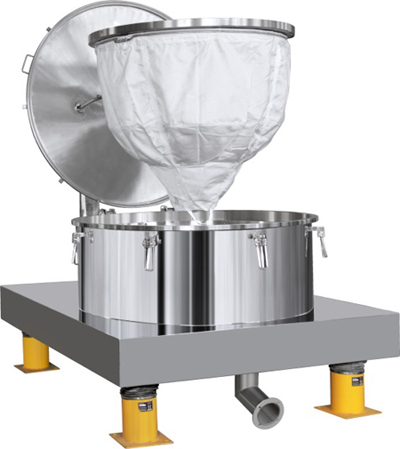

PSD series flat-plate hanging bag upper unloading centrifuge
Product structure and characteristics
SD/PSD centrifuges are all closed type, intermittently operated, hanging bag off-site unloading filtering equipment. The material is added to the drum from the upper part. Under the action of the centrifugal force field, the liquid phase passes through the filter medium and is discharged out of the machine, while the solid phase is trapped in the drum. Unloading at a designated location. It has the characteristics of stable start-up, adjustable separation factor, large capacity, high efficiency, simple operation, quick discharge, good safety performance, clean environment, low labor intensity, etc.
The PSD centrifuge eliminates the traditional hanging legs, adopts flat counterweights and high-viscosity damping shock absorbers to absorb vibration, and has no foundation installation.
Product Usage
The SD/PSD centrifuge is an improved product based on the SS three-foot upper discharge centrifuge. In addition to retaining the advantages of the SS type centrifuge, it also significantly reduces labor intensity, fast discharges, easy to clean the filter bag, improves production efficiency, and avoids pollution and scattering of finished products due to manual discharge.

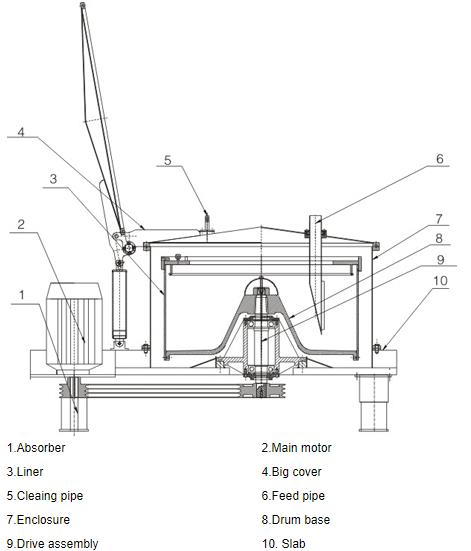

Structure chart
.jpg)
The main technical parameters
| Item | Model | |||||
| PSD800 | PSD1000 | PSD1200 | PSD1250 | PSD1500 | PSD1600 | |
| Drum diameter(mm) | 800 | 1000 | 1200 | 1250 | 1500 | 1600 |
| Drum working highly(mm) | 400 | 450 | 480 | 550 | 680 | 800 |
| Drum working volume(L) | 100 | 160 | 270 | 360 | 600 | 775 |
| Maximum loading limit(kg) | 140 | 215 | 350 | 480 | 800 | 1050 |
| Durm speed(r/min) | 1200/1500 | 1000/1200 | 1000/1200 | 1000/1200 | 850 | 800 |
| Filtration area(m2) | 1.0 | 1.41 | 1.81 | 2.16 | 3.2 | 3.2 |
| Separation factor(ω2r/ ɡ) | 645/1006 | 560/804 | 670/965 | 700/1006 | 606 | 573 |
| Motor power(kw) | 7.5/11 | 11/15 | 15/18.5 | 18.5/22 | 30 | 37 |
| Overall weight(kg) | 1500 | 1800 | 2600 | 2900 | 5800 | 6800 |
| Physical size(mm) | 1700×1300×1350 | 1800×1400×1400 | 2100×1600×1550 | 2200×1700×1560 | 2600×2200×1850 | 2980×2300×1980 |
